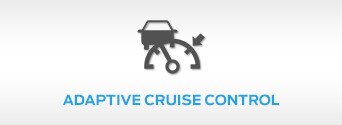

Adaptive Cruise Control

Speed control system indicator light changes color to show system mode:

• On (white light): illuminates when the adaptive cruise control system is turned on. Turns off when speed control system is turned off.
• Engaged (green light): illuminates when adaptive cruise control system is engaged (or actively in use); turns off when speed control system is disengaged.

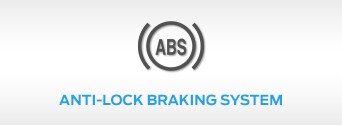

Anti-Lock Braking System

If Illuminated while you're driving, a malfunction is indicated. The normal braking system (without ABS) will continue to function, unless the brake system warning lamp is also illuminated. Have the system checked by your authorized dealer.

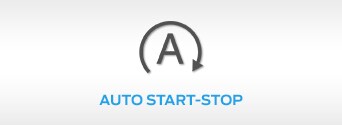

Auto Start-Stop

Illuminates to alert you when your engine is shutting down; a corresponding message may also be displayed.

Battery

If Illuminated while you're driving, a malfunction is indicated. Switch off all unnecessary electrical equipment, and have the system checked by your authorized dealer immediately.

Blind Spot Monitor

Illuminates when the Blind Spot Monitor feature is turned off; a corresponding message may also be displayed.

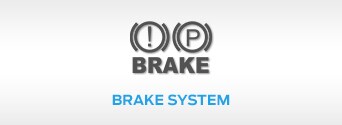

Brake System*

Illuminates if parking brake is engaged while the ignition is on. If indicator lights up while you're driving, check to ensure that parking brake is not engaged. If it isn't engaged, a low brake fluid level or brake system malfunction could be indicated. Have the system checked immediately by your authorized dealer.

*Driving your vehicle with a warning lamp on is dangerous. A significant decrease in braking performance may occur. It could take you longer to stop your vehicle. Have your vehicle checked by your authorized dealer immediately. Driving extended distances with the parking brake engaged can cause brake failure and the risk of personal injury.

Cruise Control

lluminates when Cruise Control feature is turned on.

Direction Indicator

Illuminates when left or right turn signal, or hazard warning flasher, is turned on. If indicator remains on or flashes faster, check for a burned out bulb.

Door Ajar

If indicator lights up when ignition is on, one of your doors is open.

Electric Park Brake

Lights up when electric parking brake has a malfunction.

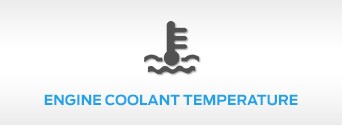

Engine Coolant Temperature

Illuminates when engine coolant temperature is high. Stop the vehicle as soon as possible, switch off engine and let cool.

Engine Oil

If illuminated while engine is running or you're driving, a malfunction is indicated. Stop your vehicle as soon as it is safe to do so, and switch the engine off. Check the engine oil level.*

*If you find that your engine oil is at the appropriate level, yet the warning lamp remains lit, do not resume driving. Have the system checked by your authorized dealer immediately.

Fasten Safety Belt

Lights up while a chime sounds to remind you to fasten your safety belt.

Front Airbag

A malfunction is indicated if this warning lamp fails to illuminate when you start your vehicle, continues to flash or remains on. Have the system checked by your authorized dealer.

Front Fog Lamps

Illuminates when you switch the front fog lamps on.

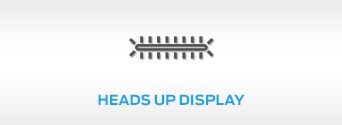

Heads Up Display

A horizontal array of red lights may appear on your windshield while you're using adaptive cruise control and/or the collision warning system (if equipped). As a functionality check, this indicator will also light up momentarily when you start your vehicle.

High Beam

Illuminates when you switch the high beam headlamps on. This indicator will also flash when you use the headlamp flasher.

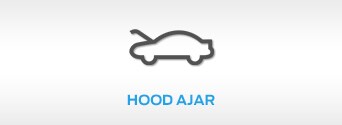

Hood Ajar

Alerts when the ignition is on, and the hood is not completely closed.

Lane Keeping Aid

Lights up when the lane keeping system is activated.

Low Fuel Level

Illuminates when the fuel level is low, or the fuel tank is nearly empty. Refuel as soon as possible.

Low Tire Pressure Warning

Lights up when your tire pressure is low. This indicator also illuminates momentarily when you switch on the ignition, showing that the lamp is functional. If the indicator remains lit while the engine is running or you're driving, check your tire pressure as soon as possible. If indicator does not illuminate when you switch the ignition on - or begins to flash at any time - have the system checked by your authorized dealer.

Parking Lamps

Illuminates when you switch the parking lamps on.

Powertrain Fault

Illuminates when a powertrain or AWD fault has been detected. Contact your authorized dealer as soon as possible.

Service Engine Soon

If the Service Engine Soon indicator light stays lit after you've started the engine, the On Board Diagnostics system (OBD) has detected a malfunction of the vehicle emissions control system. Contact your authorized dealer as soon as possible.

If indicator light is blinking, an engine misfire may be occurring, which could damage your catalytic converter. Drive in a moderate fashion (avoid heavy acceleration and deceleration), and have your vehicle serviced immediately.*

The Service Engine Soon indicator light illuminates when the ignition is first turned on (prior to engine start) in order to test the bulb, as well as indicate whether the vehicle is ready for Inspection/Maintenance (I/M) testing.

Normally, the Service Engine Soon light will stay on until the engine is cranked, then turn itself off if no malfunctions are present. However, if after 15 seconds this light blinks eight times, it means that the vehicle is not ready for I/M testing.

*Under engine misfire conditions, excessive exhaust temperatures could damage the catalytic converter, the fuel system, interior floor coverings or other vehicle components, possibly causing a fire. Have an authorized dealer service your vehicle immediately.

Stability Control

Lights up when the system is active. If indicator remains illuminated or does not light up when you switch the ignition on, a malfunction is indicated. During a malfunction, the system will switch off. Have the system checked by your authorized dealer immediately.

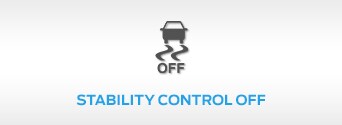

Stability Control Off

Illuminates when you switch the system off. Indicator light will go out when you switch the system back on or switch the ignition off.

Trunk Ajar

Displays when the ignition is on, and the trunk is not completely closed.
